Sailing Store

Overview

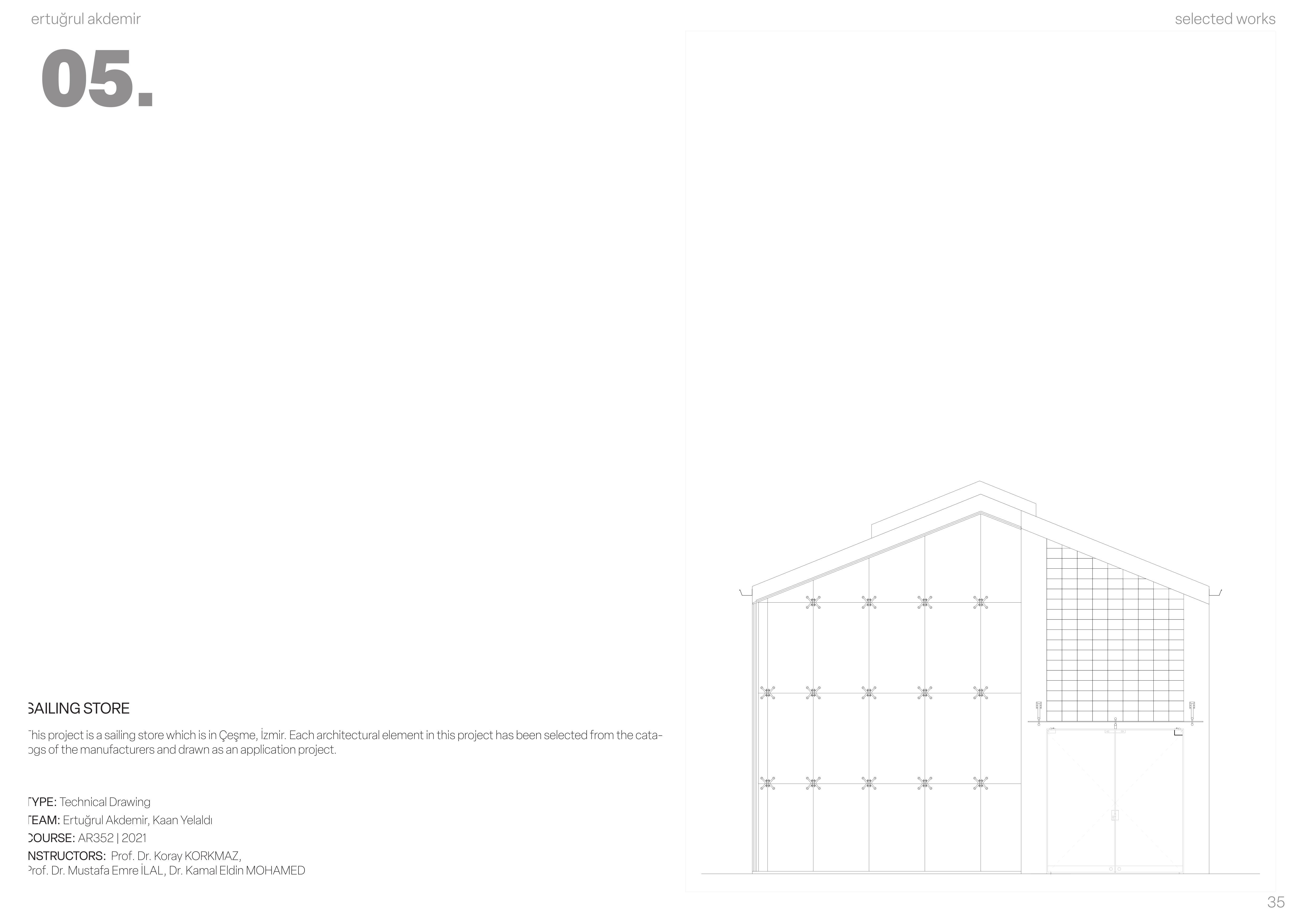

This project is a sailing store located in Çeşme, İzmir. Every architectural element has been selected from manufacturer catalogs and drawn as an application project — a comprehensive technical documentation exercise bridging design intent and construction reality.

Drawing Set

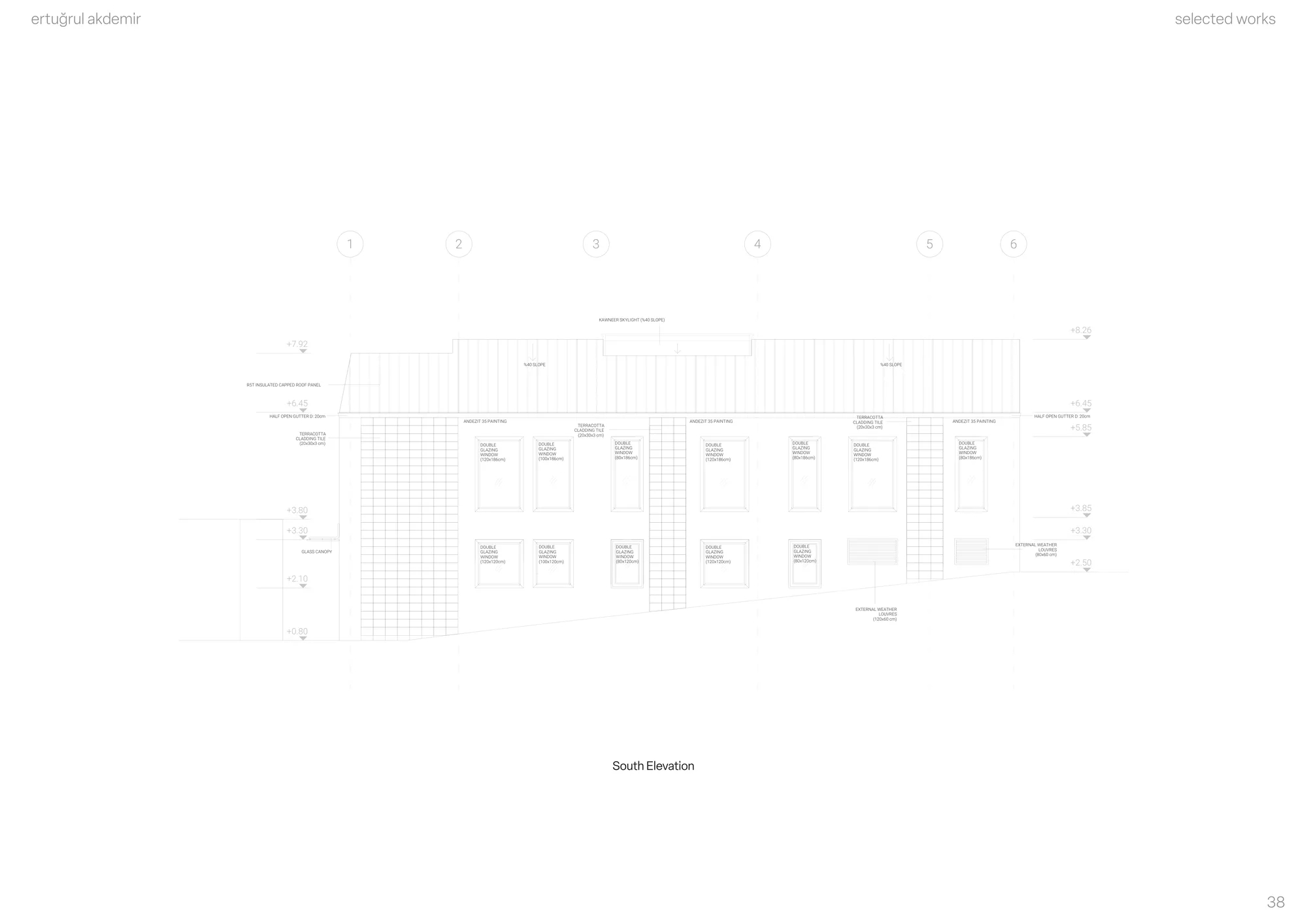

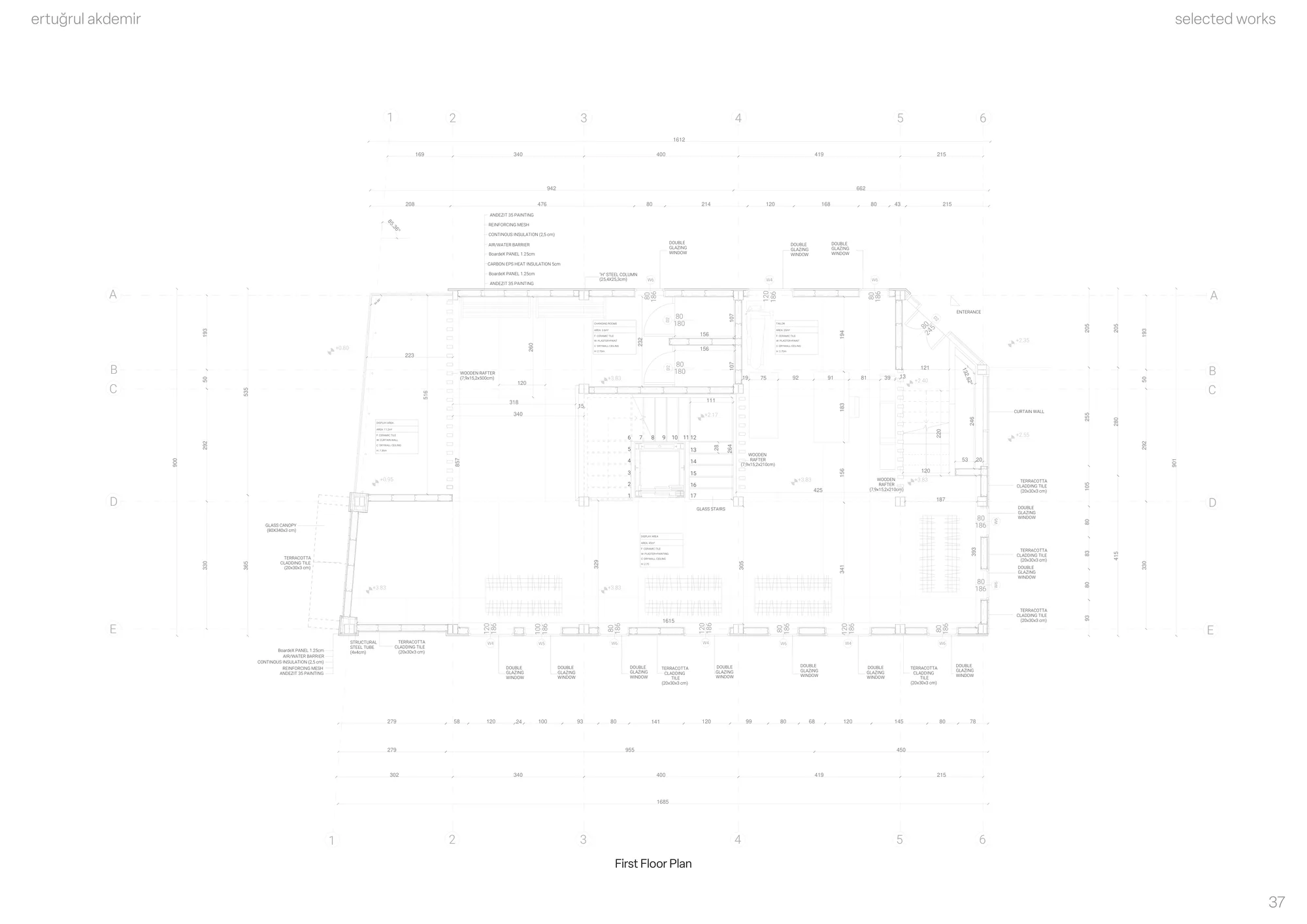

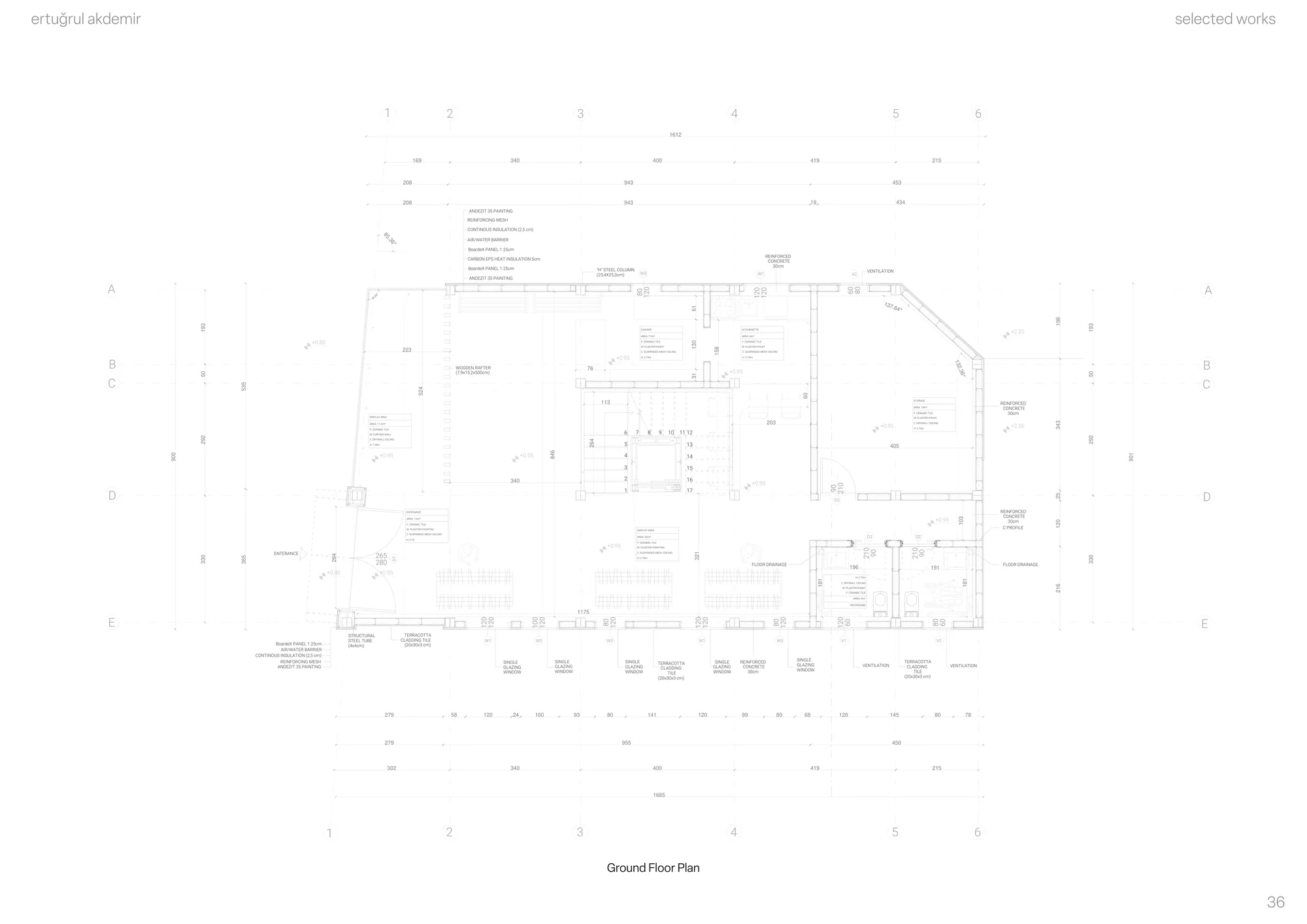

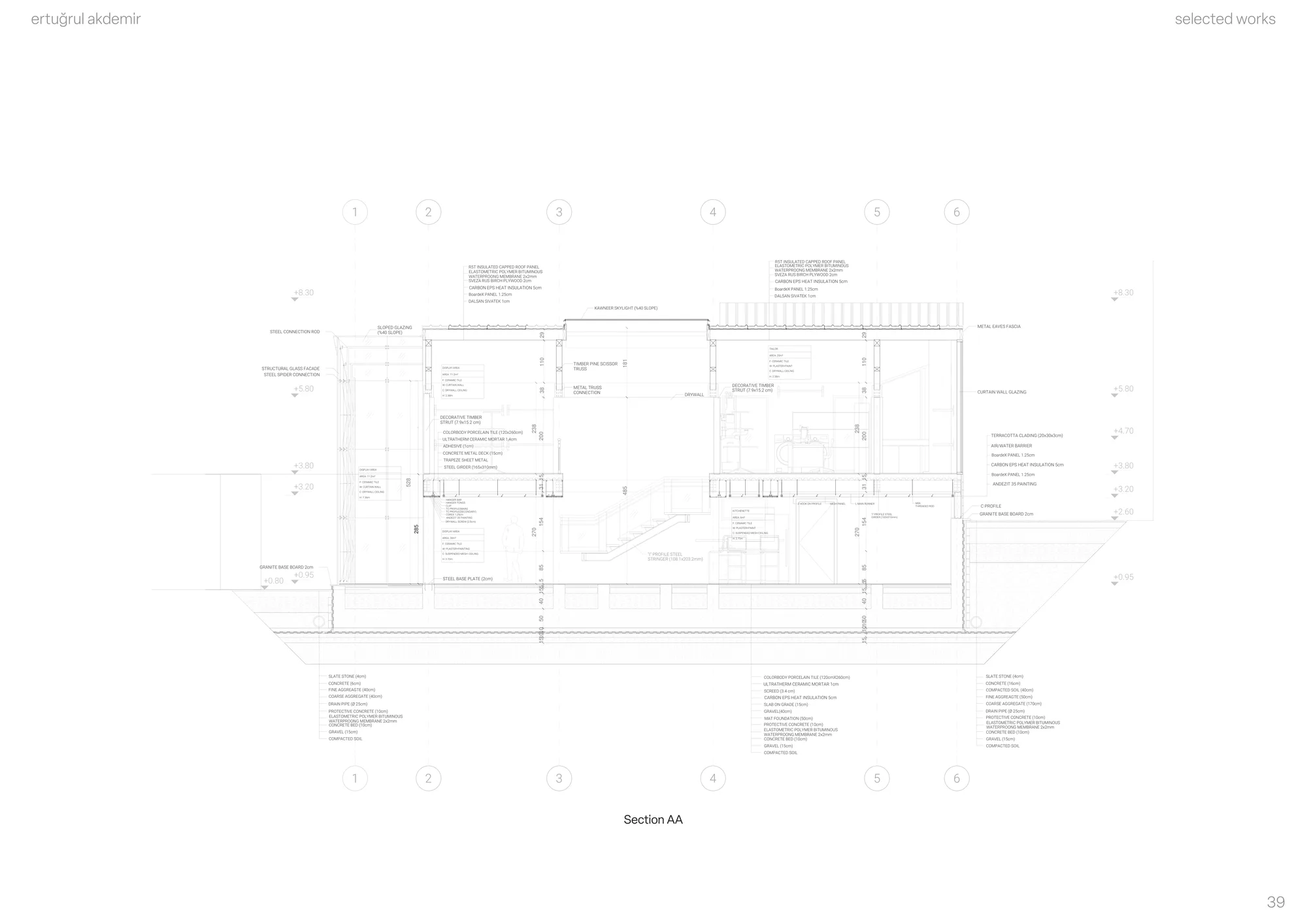

The project includes complete floor plans at 1:50 scale with full material and finish schedules, section drawings with construction assembly details, exploded axonometric diagrams, and facade drawings with window and cladding specifications.

Key Systems

Structure: H-profile steel columns (25.4×25.3 cm), I-profile steel girders (165×310 mm), timber pine scissor truss Facade: Terracotta cladding tile (20×30×3 cm), BoardeX panel 1.25 cm, continuous insulation 2.5 cm, Andezit 35 painting Roof: R5T insulated capped roof panel, Kawneer skylight (40% slope), half-open gutter D:20 cm Glazing: Curtain wall glazing, double glazing windows, structural glass facade with spider connection Floors: Colorbody porcelain tile (120×260 cm), slate stone 4 cm, concrete metal deck 15 cm Ceilings: Suspended mesh ceiling, drywall ceiling

Spaces

Ground Floor: Display area (30 m²), entrance, cashier (7.2 m²), kitchenette (6 m²), restrooms (4 m²), storage (18 m²), display area with curtain wall (11.2 m²) First Floor: Display area (45 m²), tailor (20 m²), changing rooms (3.6 m²), display area with curtain wall (11.2 m²)

Project Info

Type: Technical Drawing Course: AR352 | 2021 Team: Ertuğrul Akdemir, Kaan Yelaldı Instructors: Prof. Dr. Koray KORKMAZ, Prof. Dr. Mustafa Emre İLAL, Dr. Kamal Eldin MOHAMED
